memory block reader More...

#include "cgul_common.h"
#include "cgul_exception.h"
#include "cgul_block_reader.h"

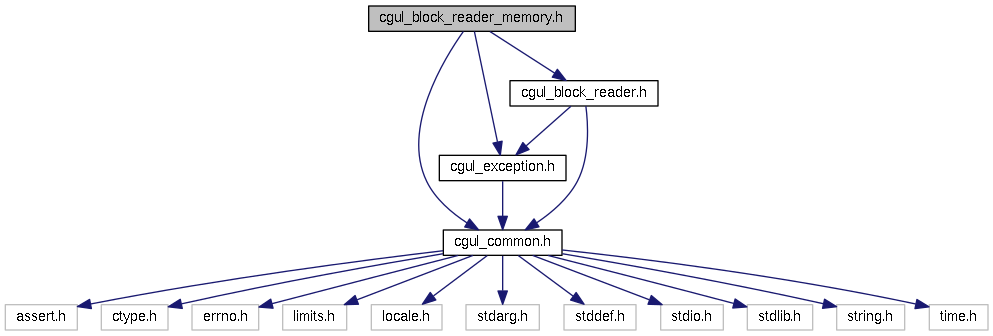

Include dependency graph for cgul_block_reader_memory.h:

This graph shows which files directly or indirectly include this file:

Typedefs
typedef typedefCGUL_BEGIN_C struct cgul_block_reader_memory *	cgul_block_reader_memory_t

Functions
CGUL_EXPORT cgul_block_reader_t	cgul_block_reader_memory__as_block_reader (cgul_exception_t *cex, cgul_block_reader_memory_t brmemory)

CGUL_EXPORT cgul_block_reader_memory_t	cgul_block_reader_memory__new (cgul_exception_t *cex)

CGUL_EXPORT cgul_block_reader_memory_t	cgul_block_reader_memory__new_from_memory (cgul_exception_t cex, void buffer, size_t buffer_size)

CGUL_EXPORT void	cgul_block_reader_memory__delete (cgul_block_reader_memory_t brmemory)

CGUL_EXPORT void	cgul_block_reader_memory__open (cgul_exception_t cex, cgul_block_reader_memory_t brmemory, void buffer, size_t buffer_size)

CGUL_EXPORT void	cgul_block_reader_memory__close (cgul_exception_t *cex, cgul_block_reader_memory_t brmemory)

CGUL_EXPORT size_t	cgul_block_reader_memory__read_next_block (cgul_exception_t cex, cgul_block_reader_memory_t brmemory, void block, size_t block_size)

CGUL_EXPORT const char *	cgul_block_reader_memory__get_presentation_name (cgul_exception_t *cex, cgul_block_reader_memory_t brmemory)

CGUL_EXPORT void	cgul_block_reader_memory__set_presentation_name (cgul_exception_t cex, cgul_block_reader_memory_t brmemory, const char presentation_name)

CGUL_EXPORT void *	cgul_block_reader_memory__get_buffer (cgul_exception_t *cex, cgul_block_reader_memory_t brmemory)

Detailed Description

Implementation of the cgul_block_reader interface for data stored in memory.

Author: Paul Serice

Typedef Documentation

§ cgul_block_reader_memory_t

typedef typedefCGUL_BEGIN_C struct cgul_block_reader_memory* cgul_block_reader_memory_t

Opaque pointer to a cgul_block_reader_memory instance.

Function Documentation

§ cgul_block_reader_memory__as_block_reader()

CGUL_EXPORT cgul_block_reader_t cgul_block_reader_memory__as_block_reader	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory
	)

Safely upcast brmemory to the cgul_block_reader interface.

Parameters

[in]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance

See also: cgul_block_reader

Referenced by cgul_block_reader_memory_cxx::as_block_reader().

§ cgul_block_reader_memory__new()

CGUL_EXPORT cgul_block_reader_memory_t cgul_block_reader_memory__new ( cgul_exception_t * cex )

Create a new cgul_block_reader_memory instance. After this method returns, cgul_block_reader_memory__open() should be called before calling cgul_block_reader_memory__read_next_block(). The client is responsible for calling cgul_block_reader_memory__delete() on the object returned. If an error occurs, NULL is returned, and an exception is thrown.

Note: It is safe to cast the object returned directly to a cgul_block_reader (i.e., to the base type).

Parameters

[in,out] cex c-style exception

Returns: new cgul_block_reader_memory instance

Referenced by cgul_block_reader_memory_cxx::cgul_block_reader_memory_cxx().

§ cgul_block_reader_memory__new_from_memory()

CGUL_EXPORT cgul_block_reader_memory_t cgul_block_reader_memory__new_from_memory	(	cgul_exception_t *	cex,
		void *	buffer,
		size_t	buffer_size
	)

This method creates a new cgul_block_reader_memory instance and calls cgul_block_reader_memory__open() passing it buffer and buffer_size. This class does not take ownership of buffer so the client is still responsible for freeing buffer if necessary. The client is also responsible for calling cgul_block_reader_memory__delete() on the object returned. If an error occurs, NULL is returned, and an exception is thrown.

Parameters

[in,out]	cex	c-style exception
[in]	buffer	memory buffer
[in]	buffer_size	size of `buffer` in bytes

Returns: new cgul_block_reader_memory instance

Referenced by cgul_block_reader_memory_cxx::cgul_block_reader_memory_cxx().

§ cgul_block_reader_memory__delete()

CGUL_EXPORT void cgul_block_reader_memory__delete ( cgul_block_reader_memory_t brmemory )

This virtual method deletes the brmemory instance freeing all internally allocated resources. The client must not use brmemory after calling this method.

Parameters

[in] brmemory cgul_block_reader_memory instance

Referenced by cgul_block_reader_memory_cxx::set_obj(), and cgul_block_reader_memory_cxx::~cgul_block_reader_memory_cxx().

§ cgul_block_reader_memory__open()

CGUL_EXPORT void cgul_block_reader_memory__open	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory,
		void *	buffer,
		size_t	buffer_size
	)

Set the buffer buffer to use when reading blocks of data from memory. If a memory buffer is already open, it will be closed before this method attempts to open the new memory buffer. This class does not take ownership of buffer. Thus, the client is still responsible for freeing buffer if necessary. If an error occurs, an exception is thrown.

Parameters

[in,out]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance
[in]	buffer	input memory buffer
[in]	buffer_size	size of `buffer` in bytes

Referenced by cgul_block_reader_memory_cxx::open().

§ cgul_block_reader_memory__close()

CGUL_EXPORT void cgul_block_reader_memory__close	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory
	)

Close the memory. After this method returns, cgul_block_reader_memory__open should be called before calling any other method.

Parameters

[in,out]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance

Referenced by cgul_block_reader_memory_cxx::close().

§ cgul_block_reader_memory__read_next_block()

CGUL_EXPORT size_t cgul_block_reader_memory__read_next_block	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory,
		void *	block,
		size_t	block_size
	)

Virtual method that reads one block of data block of size block_size bytes from the underlying buffer. The user is responsible for making sure block points to at least block_size contiguous bytes of memory. The user is also responsible for making sure block does not overlap with the open buffer from which blocks are read (as required by memcpy()). This method returns the number of bytes read or 0 if EOF is reached without error. If an error occurs, 0 is returned, and an exception is thrown.

Parameters

[in,out]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance
[in]	block	block
[in]	block_size	block size in bytes

Returns: number of bytes read

Referenced by cgul_block_reader_memory_cxx::read_next_block().

§ cgul_block_reader_memory__get_presentation_name()

CGUL_EXPORT const char* cgul_block_reader_memory__get_presentation_name	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory
	)

Virtual method that returns the presentation name.

Parameters

[in,out]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance

Returns: presentation name

Referenced by cgul_block_reader_memory_cxx::get_presentation_name().

§ cgul_block_reader_memory__set_presentation_name()

CGUL_EXPORT void cgul_block_reader_memory__set_presentation_name	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory,
		const char *	presentation_name
	)

Virtual method that sets the presentation name. The presentation name is primarily used for error reporting and can be set to anything, but it does need to be set again if the input buffer changes. If the presentation name is not set, "MEMORY" is returned. An exception is thrown if an attempt is made to set the presentation name without first setting the input buffer.

Parameters

[in,out]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance
[in]	presentation_name	presentation name

Referenced by cgul_block_reader_memory_cxx::set_presentation_name().

§ cgul_block_reader_memory__get_buffer()

CGUL_EXPORT void* cgul_block_reader_memory__get_buffer	(	cgul_exception_t *	cex,
		cgul_block_reader_memory_t	brmemory
	)

Return the currently opened buffer from which blocks are read. The client must not do anything that would invalidate the pointer or corrupt the associated data stream. This method throws an exception only if a file is not currently open.

Because the client is responsible for freeing the buffer if necessary, it can be convenient to call this method just before deleting the object in order to free the pointer returned.

Parameters

[in]	cex	c-style exception
[in]	brmemory	`cgul_block_reader_memory` instance

Returns: currently opened file or memory

Referenced by cgul_block_reader_memory_cxx::get_buffer().
