cgul_hex_dump.h File Reference

hex dump More...

#include "cgul_common.h"
#include "cgul_exception.h"
#include "cgul_string.h"

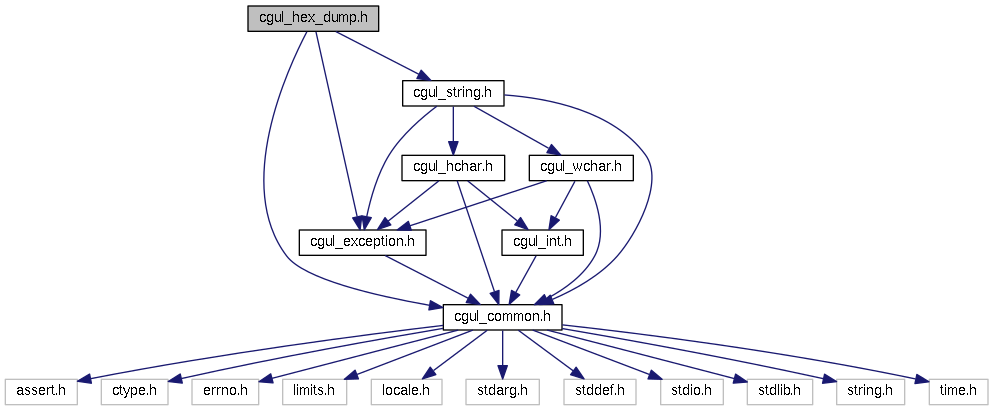

Include dependency graph for cgul_hex_dump.h:

This graph shows which files directly or indirectly include this file:

Typedefs
typedef typedefCGUL_BEGIN_C struct cgul_hex_dump *	cgul_hex_dump_t

Functions
CGUL_EXPORT cgul_hex_dump_t	cgul_hex_dump__new (cgul_exception_t *cex)
CGUL_EXPORT void	cgul_hex_dump__delete (cgul_hex_dump_t hd)
CGUL_EXPORT void	cgul_hex_dump__append (cgul_exception_t *cex, cgul_hex_dump_t hd, const void *buffer, size_t buffer_length)
CGUL_EXPORT cgul_string_t	cgul_hex_dump__get_value (cgul_exception_t *cex, cgul_hex_dump_t hd)
CGUL_EXPORT void	cgul_hex_dump__clear (cgul_exception_t *cex, cgul_hex_dump_t hd, int reset_byte_count)

Detailed Description

Create a hex dump of arbitrary binary data.

Author

Paul Serice

Typedef Documentation

cgul_hex_dump_t

typedef typedefCGUL_BEGIN_C struct cgul_hex_dump* cgul_hex_dump_t

Function Documentation

cgul_hex_dump__new()

CGUL_EXPORT cgul_hex_dump_t cgul_hex_dump__new

(

cgul_exception_t *

cex

)

Create a new cgul_hex_dump object. The caller is responsible for freeing the object by calling cgul_hex_dump__delete(). If memory cannot be allocated, NULL is returned and an exception is thrown.

Parameters

[in,out]

cex

c-style exception

Returns

new cgul_hex_dump instance

cgul_hex_dump__delete()

CGUL_EXPORT void cgul_hex_dump__delete

(

cgul_hex_dump_t

hd

)

This method frees all internally allocated memory. Do not try to use hd after calling this method.

Parameters

[in]

hd

cgul_hex_dump instance

cgul_hex_dump__append()

CGUL_EXPORT void cgul_hex_dump__append	(	cgul_exception_t *	cex,
		cgul_hex_dump_t	hd,
		const void *	buffer,
		size_t	buffer_length
	)

Bytes from buffer to buffer + buffer_length will be append to the conversion. You can call this function as often as you like. For efficiency, a new cgul_string is internally allocated for each call you make to cgul_hex_dump__append(). The new cgul_string is then put on a linked list. When you call cgul_hex_dump__get_value(), all the cgul_string objects on the list are concatenated. If this function fails to allocate memory, an exception is thrown.

Parameters

[in,out]	cex	c-style exception
[in]	hd	cgul_hex_dump instance
[in]	buffer	buffer
[in]	buffer_length	buffer length

cgul_hex_dump__get_value()

CGUL_EXPORT cgul_string_t cgul_hex_dump__get_value	(	cgul_exception_t *	cex,
		cgul_hex_dump_t	hd
	)

Call this method at any point to get a copy of all the strings appended together that comprise elements on the internal linked list. The caller is responsible for freeing the copy by calling cgul_string_delete(). If this function fails to allocate memory, an exception is thrown.

Parameters

[in,out]	cex	c-style exception
[in]	hd	cgul_hex_dump instance

Returns

copy of current hex dump as a single string

cgul_hex_dump__clear()

CGUL_EXPORT void cgul_hex_dump__clear	(	cgul_exception_t *	cex,
		cgul_hex_dump_t	hd,
		int	reset_byte_count
	)

The method lets you reuse a cgul_hex_dump object. If reset_byte_count is true, the object will be reset to the same state as any new cgul_hex_dump object would have. If reset_byte_count is false, the object will have the same state as any new cgul_hex_dump object except the byte count that runs along the left edge of the output will not be reset.

Parameters

[in]	cex	c-style exception
[in]	hd	cgul_hex_dump instance
[in]	reset_byte_count	whether to reset the byte count
